- Size: 18
- Place of Origin: China
- Brand Name: wuzheng
- Model Number: CK7YPJZ1675P-2
- Weight: 1840.000 kg
Model | 7YP1150KD8-3-1 | ||
Cabin | Xiaoyinhu wind shield | ||
Main dimensions | Overall dimensions (LxWxH)mm | (mm) | 3705*1300*1400 |
Dimensions of the cargo body (LxWxH)mm | (mm) | 2000*1300*400 | |
Wheel base | (mm) | 2500 | |
Wheel track (front/rear) | (mm) | 1240 | |
Min. ground clearance | (mm) | 220 | |
Weight | Curb weight | (kg) | 980 |
Rated payload | (kg) | 490 | |
Persons in cab | (persons) | 1 | |
Gross vehicle weight | （kg） | 1535 | |
Overall performance | Max. speed | （km/h） | 42 |
Max. slope of climb | （%） | 15 | |
Min. turning radius | （m） | 3.65 | |
Engine | Engine Type | CCZS1115 | |
Displacement | （L） | 1.194 | |
Rated horsepower | （kg.m/rpm） | 22 | |
Steering gear Type | Mechanical | ||
Service brake and boostingType | oil brake | ||
Wheels and tire sizes | Front wheel | 5.00-14 | |
Rear wheel | 6.50-16 | ||
Electric device | Rated voltage | V | 12 |
Battery | 6-QW-100MF | ||

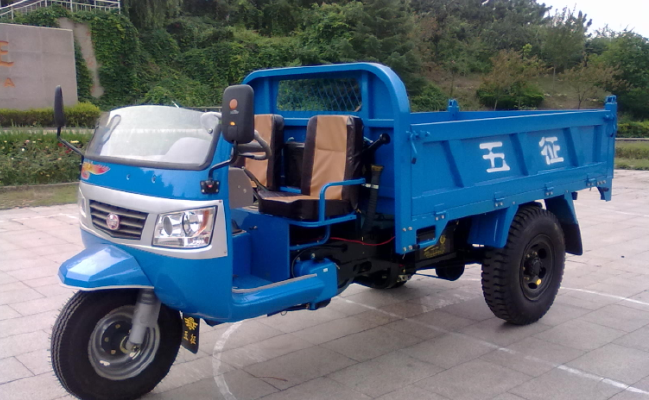

Compact structure
Simple windshield design, compact structure, dual stringer, strong loading capacity, and thick carriage make the vehicle more durable.
Strong environment adaptability
Short wheelbase, flexible steering, low chassis and adhesive herringbone tread tires enable the vehicle could work in narrow space and drive freely in mine tunnel and on bumpy roads.
Dumping
The dumping container with a lifting angle of not less than 45° can dump various kinds of goods fast and efficiently， within 20 s from the ground to lifting .
Easy to operate
Simple windshield design offers you a good view. Steering system with worm steering device makes steering operation easier and more flexible, reduce driver’s labor intensity, and improve working quality.
